QR-R24 · Racks & clips
24-station round titanium anodizing rack

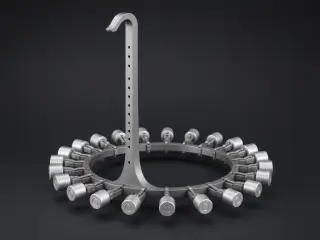

Racks many small aluminum parts at once for anodizing: machined parts, electronic housings, and hardware. The rack locates the parts, carries their weight, and feeds current to each one.
A Grade 2 centre spine and radial frame with 24 evenly spaced, replaceable Grade 4 spring contacts. Existing 20, 30, or 42-station designs from the workshop are quoted first.
- Overall height
- ≈ 450 mm
- Max diameter
- ≈ 220 mm
- Frame
- Grade 2, 2.0 mm
- Spine
- Ø 10 mm
- Stations
- 24, replaceable
- Load target
- 5 kg
Quoted at 1 · 5 · 10 · 20 pcs. Sample first, then batch.

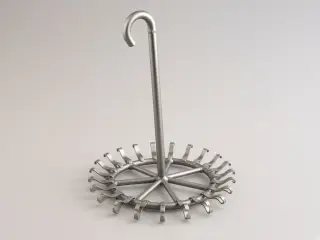

Reference drawing
Dimensions at a glance
- Height
- ≈ 450 mm overall
- Diameter
- ≈ 220 mm
- Spine
- Ø 10 mm, Grade 2
- Hook
- 40 mm inside
- Contacts
- 24 × Grade 4
Dimensions in mm unless marked. Reference values for comparing quotes; production follows the drawing you approve.
Full specification
| Code | QR-R24 |
|---|---|
| Size | Overall height about 450 mm; maximum diameter about 220 mm. |
| Frame | Grade 2; centre spine Ø10 mm; frame plate about 2.0 mm. |

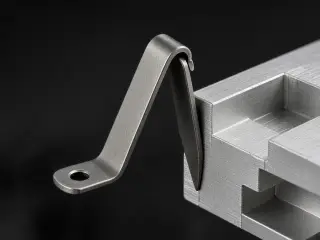

| Contacts | 24 evenly spaced, replaceable Grade 4 spring contacts. |
| Hook | 40 mm inside opening; the workshop's proven contact design preferred. |
| Load | Target total load 5 kg; the workshop states recommended current and maximum load. |
Options and variants
| Option | What changes |
|---|---|
| 20 / 30 / 42 stations | Existing workshop designs quoted first. |
| Bolt-on or welded contacts | Priced separately. |
| Insulating coating on spine | Only if you specify it. |
| Spare contact packs | QC-A08 clips. |

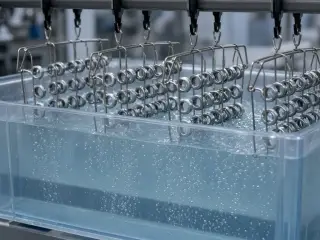

How it is used
- Load parts with the contact on the agreed face.
- Hang from the flight bar; check the hook seats fully.
- Strip contacts between loads as your process needs.
- Swap worn contacts instead of the whole rack.
First-article checks
- Key-dimension report on the first article, measured against the agreed drawing.
- Material certificate from the titanium supplier for the sample; heat-lot traceability for batch orders.
- Close-up photos of welds and contact points, and photos of the packed parts before dispatch.
Each piece protected against crushing, bending, and scratching; every pack labelled with code, size, grade, and quantity.
What to send us
- Part material, size, weight, and surface area.
- Where a contact mark is allowed on the part.
- Parts per flight and current per rack.
- Flight bar size and hook direction.
- Bath, temperature, and immersion depth.
- Your existing rack drawing or a photo with a ruler, if you have one.
Related parts
Quote QR-R24
Send your dimensions and bath. Written sample and batch prices, lead time, and shipping.
