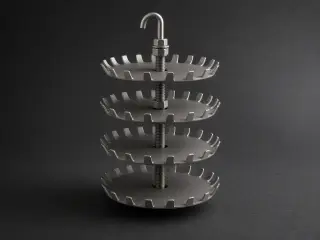

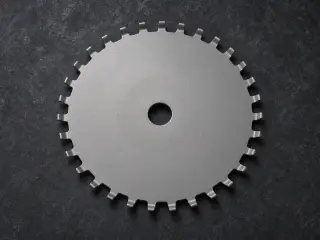

9 in 30-station titanium disc rack
For batch anodizing of many small parts of similar size. Compared with the 24-station round rack, the discs are modular: sell them singly, in pairs, or as a full assembly on a spine.

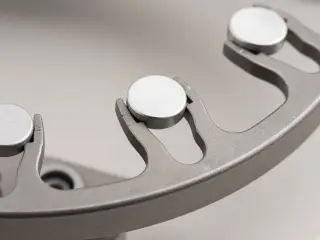

Grade 2 plate about 2.0 mm thick with 30 evenly spaced forked fingers or spring contacts at the rim; Grade 4 contact parts preferred.
- Diameter
- ≈ 229 mm (9 in)
- Plate
- Grade 2, 2.0 mm
- Stations
- 30
- Mount
- Centre M10
- Contacts
- Grade 4 preferred
- Load target
- 3 kg / disc
Quoted at 1 · 4 · 10 · 20 pcs. Sample first, then batch.
Reference drawing
Dimensions at a glance
- Diameter
- ≈ 229 mm
- Plate
- 2.0 mm Grade 2
- Stations
- 30, even
- Centre
- M10 or matched spine
- Supply
- Single · pair · assembly
Dimensions in mm unless marked. Reference values for comparing quotes; production follows the drawing you approve.
Full specification
| Code | QR-D30 (disc) / QR-D30-P (pair) / QR-D30-A (assembly) |
|---|---|
| Disc | Diameter about 229 mm (9 in); Grade 2 plate about 2.0 mm. |
| Stations | 30 evenly spaced forked fingers or spring contacts; Grade 4 contact parts preferred. |
| Mounting | Centre M10, or a removable joint matched to the workshop's proven spine. |
| Load | Target 3 kg per disc; the workshop states recommended current and part range. |
| Supply | Single disc, matched pair, or full assembly with spine, each quoted separately. |
Options and variants
| Option | What changes |
|---|---|
| Other diameters | 6, 7, 12 in. |
| Station count | 20–48 per disc. |
| Spine length | Number of discs per assembly. |
| Spare discs | Swap worn discs, keep the spine. |
How it is used
- Set disc spacing on the spine to suit part height.
- Load evenly around each disc.
- Strip fingers between loads.
- Replace single discs as they wear.
First-article checks
- Key-dimension report on the first article, measured against the agreed drawing.
- Material certificate from the titanium supplier for the sample; heat-lot traceability for batch orders.
- Close-up photos of welds and contact points, and photos of the packed parts before dispatch.
Each piece protected against crushing, bending, and scratching; every pack labelled with code, size, grade, and quantity.
What to send us
- Part material, size, weight, and surface area.
- Where a contact mark is allowed on the part.
- Parts per flight and current per rack.
- Flight bar size and hook direction.
- Bath, temperature, and immersion depth.
- Your existing rack drawing or a photo with a ruler, if you have one.
