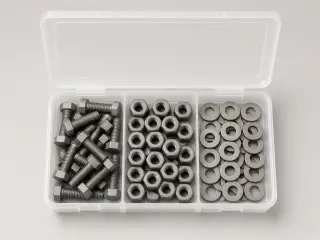

Grade 2 titanium fastener kit, 1/4-20

Name: Grade 2 titanium fastener kit, 1/4-20
Brand: Argon
SKU: QF-1420

For assembling baskets, racks, and brackets in corrosive lines, where steel and stainless hardware rust or set up galvanic attack. Chosen for corrosion resistance and easy service.

Not for aerospace, medical, or high-load safety-critical joints. Grade 5 (Ti-6Al-4V) is a different product and never a silent substitute.

Reference specQF-1420

Thread: 1/4-20 UNC
Bolt length: 1.000 in
Material: ASTM Grade 2
Fit: 2A / 2B
Across flats: 7/16 in
Standard: ASME B18 series

Quoted at 50 · 100 · 500 · 1,000 sets. Sample first, then batch.

Quote this part Full specification

Reference drawing

Dimensions at a glance

Bolt: 1/4-20 UNC × 1.000, full thread
Head: 7/16 AF, ≈ 0.150 thick
Nut: 7/16 AF, ≈ 0.220 thick
Washer: 0.265 × 0.750 × 0.040

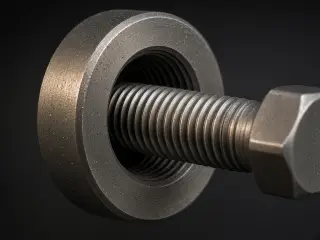

Check: Go/no-go gauged

Dimensions in mm unless marked. Reference values for comparing quotes; production follows the drawing you approve.

Full specification

Code	QF-1420-1: one hex bolt + one hex nut + one flat washer
Material	ASTM Grade 2 throughout; Grade 5 only on request and named on the quote.
Bolt	1/4-20 UNC × 1.000 in, full thread, class 2A; 7/16 in across flats; head about 0.150 in.
Nut	1/4-20 UNC, class 2B; 7/16 in across flats; about 0.220 in thick.
Washer	ID about 0.265 in, OD 0.750 in, about 0.040 in thick.
Standard and check	Dimensions to ASME B18 series; the workshop names its gauges and inspection method. Unplated, degreased.

Options and variants

Option	What changes
10-24, 5/16-18, 3/8-16	Same Grade 2 build.
Metric M5–M10	ISO coarse thread.
Other lengths	0.5–3 in.
Socket head	For tight spaces.

How it is used

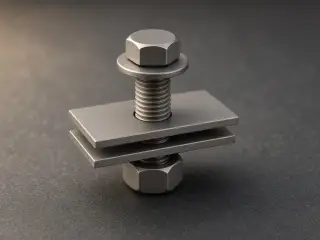

Use titanium washers on both sides when joining sheet.
Apply anti-seize to avoid galling on titanium threads.
Do not mix with steel hardware in the bath.
Re-check torque after first heat cycle.

First-article checks

Key-dimension report on the first article, measured against the agreed drawing.
Material certificate from the titanium supplier for the sample; heat-lot traceability for batch orders.
Close-up photos of welds and contact points, and photos of the packed parts before dispatch.

Each piece protected against crushing, bending, and scratching; every pack labelled with code, size, grade, and quantity.
