Titanium anode baskets

Bare commercially pure titanium baskets that hold soluble anode material in nickel, copper, and similar baths. No MMO, no platinum. From a 150 mm lab basket to a 450 mm heavy-duty build.

Quote a basket

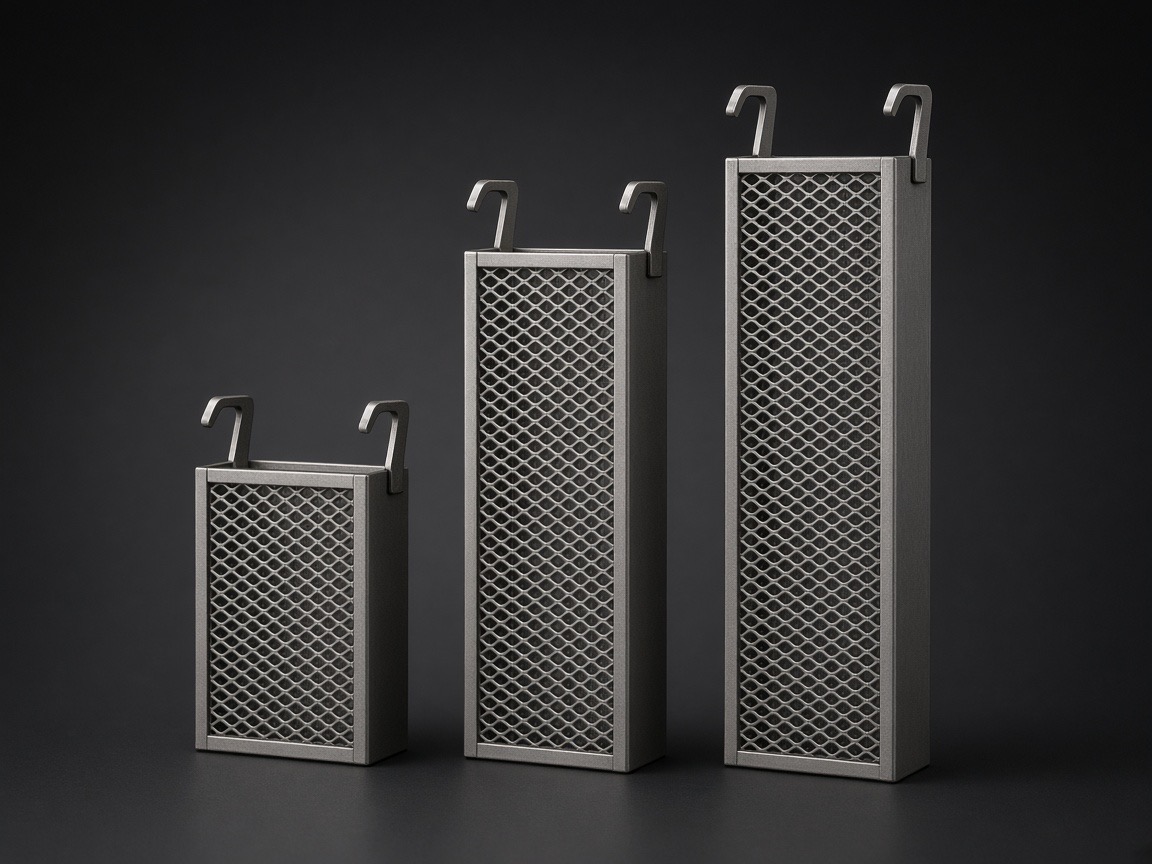

Three titanium baskets of different lengths — Same section, three body lengths. Representative render.

Choose a build

QB-S150

Small titanium anode basket, 150 × 70 × 40 mmLab tanks, jewelry and repair plating

150 × 70 × 40 mmGrade 115–25 A target

QB-R2518

Rectangular titanium anode basket, 2.5 × 6 × 18 inThe common industrial size for nickel and copper

2.5 × 6 × 18 inGrade 150 A target

QB-C450

Custom heavy-duty rectangular anode basketBuilt to your tank, bus bar and load

450 × 150 × 75 mm ref.0.80 / 1.27 mm50 or 75 A

QB-T2024

Cylindrical titanium anode basket, 2 × 24 inRound anode positions and narrow tanks

Ø 2 × 24 inGrade 1Stud or hook

Side by side

Code	Size	Material	Mesh	Hook / connection	Quoted at
QB-S150	150 × 70 × 40 mm	Grade 1, ≥ 0.70	Mesh front/back	Double, 15–25 A	1 · 5 · 10 · 20 · 50 pcs
QB-R2518	63.5 × 152.4 × 457.2 mm	Grade 1, ≥ 0.70	Mesh 2 faces	Double, 50 A	1 · 4 · 10 · 20 · 50 pcs
QB-C450	450 × 150 × 75 mm ref.	Grade 1, 0.80 / 1.27	Mesh 4 faces	Double, 50 / 75 A	1 first article + 19 · also 50 pcs same drawing
QB-T2024	Ø 50.8 × 609.6 mm	Grade 1, ≥ 0.70	Mesh tube	M8/M10 stud or hook	1 · 4 · 10 · 20 pcs

Every basket can be made longer, shorter, or heavier to your drawing.

Build details common to every basket

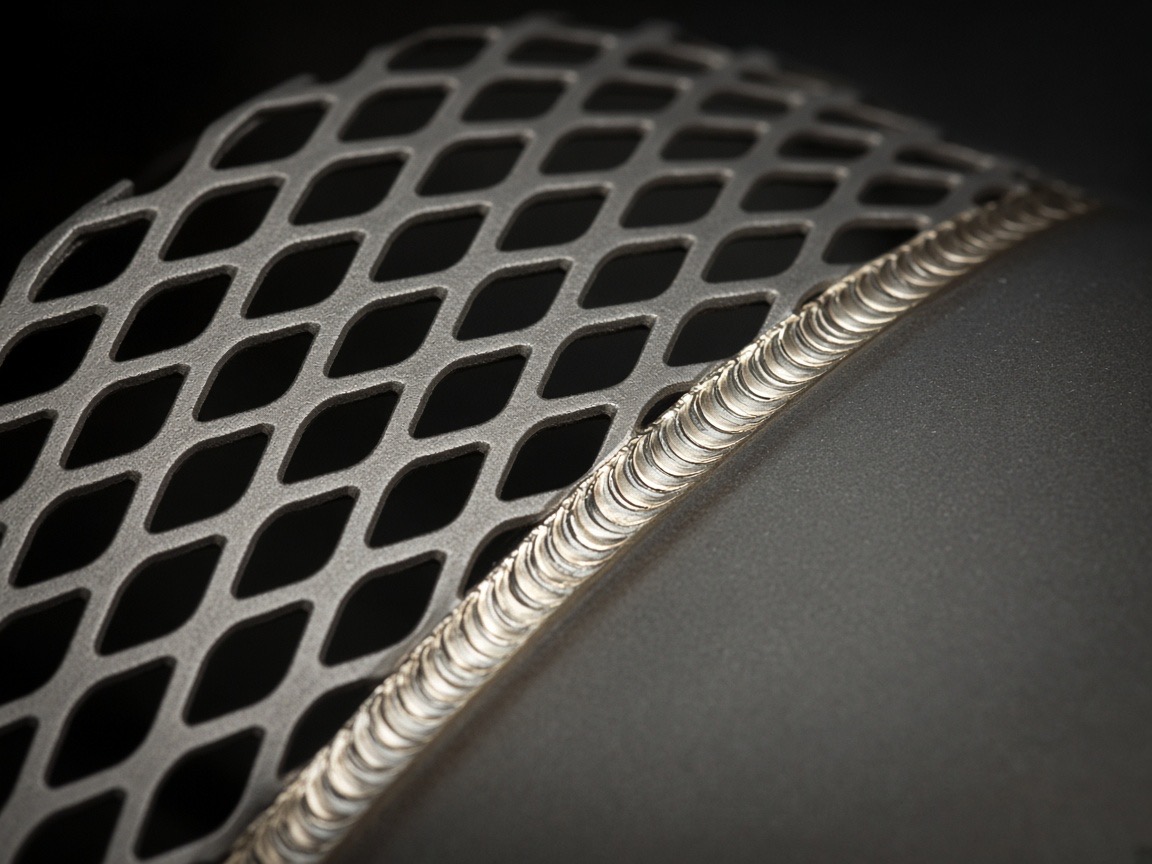

Titanium mesh TIG weld macro — Expanded mesh TIG-welded to solid sheet. Representative render.

Mesh	Diamond expanded titanium mesh, SWD 4–5 mm × LWD 10–13 mm typical; match yours on request.
Welding	Argon-shielded TIG. Welds silver to pale straw, not blue or grey.
Finish	Deburred, degreased, no coating.
Grades	Grade 1 body, Grade 2 hooks and frames; never substituted without approval.
Paperwork	Mill certificate as issued; dimension report on the first article.

Before you order

Bath type, main chemistry, additives, and whether it contains fluoride.
Normal and maximum operating temperature.
Total current, current per basket, voltage, and run time.
Bus bar shape and size, hook direction, and contact face.
Distance from bus bar to solution level, and solution level to tank floor.
Anode material, particle size, and load weight per basket.

Fluoride warning. Fluoride-containing baths attack titanium. Tell us if your bath contains fluoride before we quote.

Have a worn part or a drawing?

Send the measurements and the bath. You get a sample price, a batch price, and a ship date, in writing.

Request a quote
