Small titanium anode basket, 150 × 70 × 40 mm

Name: Small titanium anode basket, 150 × 70 × 40 mm
Brand: Argon
SKU: QB-S150

An open-top basket for laboratories, pilot tanks, and jewelry or hardware repair plating. It holds nickel rounds, copper pellets, or another soluble anode you have qualified for your bath, and carries current into that anode material.

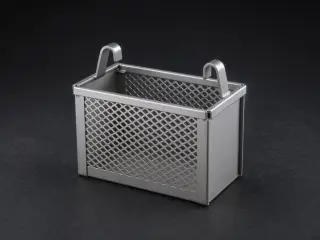

Front and back faces are expanded titanium mesh; sides and bottom are solid sheet, with a reinforced top frame so the basket keeps its shape when loaded.

Reference specQB-S150

Effective size: 150 × 70 × 40 mm
Material: ASTM Grade 1
Sheet / mesh: ≥ 0.70 mm
Mesh open area: 60–70 %
Hook: Double contact, 100 drop
Current target: 15–25 A

Quoted at 1 · 5 · 10 · 20 · 50 pcs. Sample first, then batch.

Quote this part Full specification

Reference drawing

Dimensions at a glance

Body: 150 × 70 × 40 mm, open top
Mesh: SWD 4–5 · LWD 10–13 mm
Hook drop: 100 mm
Hook opening: 35 mm inside
Faces: Mesh front/back, solid sides + bottom

Dimensions in mm unless marked. Reference values for comparing quotes; production follows the drawing you approve.

Full specification

Code	QB-S150
Effective size	150 × 70 × 40 mm, open top
Material	ASTM Grade 1 commercially pure titanium, sheet and mesh at least 0.70 mm thick. Grade 2 quoted separately.
Construction	Expanded mesh on front and back; solid side panels and bottom; reinforced top frame.
Mesh	Target short way of diamond (SWD) 4–5 mm, long way (LWD) 10–13 mm, open area 60–70 %.
Hook	Double-contact titanium hook, 100 mm drop, 35 mm inside opening. Design target 15–25 A, confirmed by the workshop on the quote.

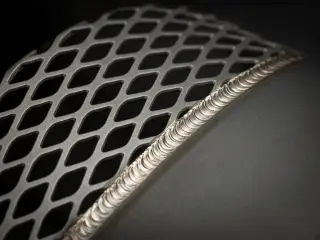

Welding and finish	TIG welded under argon, degreased; no cracks, sharp edges, loose particles, or visible distortion; no functional coating.

Options and variants

Option	What changes
Grade 2 body	Stiffer sheet, slightly higher price.
Single-contact hook	Simpler hook for light current.
Lid or divider	Quoted from your sketch.
Different size	Any small L × W × D; send the tank opening.

How it is used

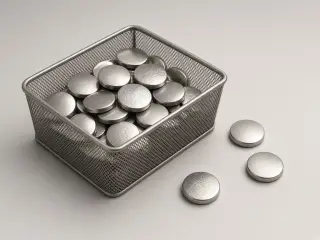

Fill to below the top frame with qualified anode material.

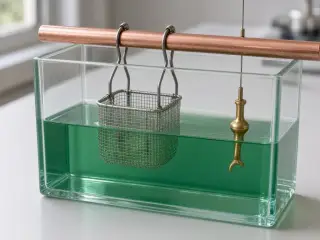

Hang both hooks fully seated on the anode bar.
Fit an anode bag if your process needs one.
Top up anode material as it dissolves; the titanium itself does not dissolve under normal anodic conditions.

First-article checks

Key-dimension report on the first article, measured against the agreed drawing.
Material certificate from the titanium supplier for the sample; heat-lot traceability for batch orders.
Close-up photos of welds and contact points, and photos of the packed parts before dispatch.

Each piece protected against crushing, bending, and scratching; every pack labelled with code, size, grade, and quantity.
