QB-T2024 · Anode baskets

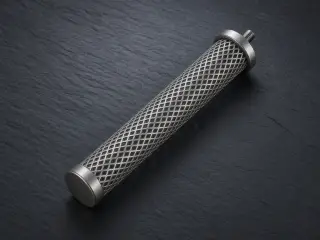

Cylindrical titanium anode basket, 2 × 24 in
A slender tube basket for round anode positions and compact tanks, filled with anode pellets or chunks. It is the second standard basket shape after the rectangular 2.5 × 6 in.
A rolled expanded-mesh tube with a solid bottom cap, a reinforcing ring at the top, and a removable cap for loading. Connect by a titanium stud or a titanium hook.
- Diameter
- ≈ 50.8 mm (2 in)
- Effective length
- 609.6 mm (24 in)
- Material
- ASTM Grade 1
- Mesh
- ≥ 0.70 mm

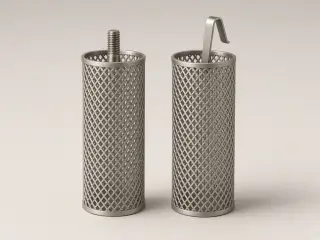

- Connection A
- M8 / M10 Ti stud
- Connection B
- Ti hook
Quoted at 1 · 4 · 10 · 20 pcs. Sample first, then batch.
Reference drawing
Dimensions at a glance
- Diameter
- ≈ 50.8 mm
- Length
- 609.6 mm effective
- Mesh
- SWD 4–5 · LWD 10–13, 60–70 %
- Top
- Ring + removable cap
- Connection
- A: stud · B: hook
Dimensions in mm unless marked. Reference values for comparing quotes; production follows the drawing you approve.
Full specification
| Code | QB-T2024-A (stud) / QB-T2024-B (hook) |
|---|---|
| Size | Outside diameter about 50.8 mm (2 in); effective length 609.6 mm (24 in). |
| Material | ASTM Grade 1, mesh at least 0.70 mm; 1.00 mm quoted separately. |
| Construction | Rolled expanded-mesh tube, solid bottom cap, top reinforcing ring, removable loading cap. |
| Mesh | Target SWD 4–5 mm, LWD 10–13 mm, open area 60–70 %. |
| Connection | A: M8 or M10 titanium stud. B: titanium hook. Quoted separately. |
Options and variants
| Option | What changes |
|---|---|
| Length 12 / 18 / 30 in | Same diameter, different length. |
| Diameter 2.5 / 3 in | Larger fill volume. |
| 1.00 mm mesh | Heavier wall. |
| Round anode bag | Tube bag cut to fit. |
How it is used

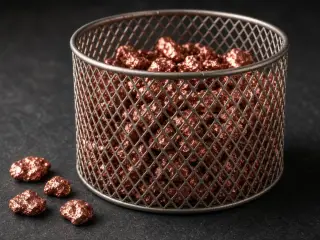

- Remove the top cap and fill with pellets or chunks.
- Refit the cap and connect by stud or hook.
- Bag the tube if your bath needs it.
- Check the stud thread or hook contact at each top-up.
First-article checks
- Key-dimension report on the first article, measured against the agreed drawing.
- Material certificate from the titanium supplier for the sample; heat-lot traceability for batch orders.
- Close-up photos of welds and contact points, and photos of the packed parts before dispatch.
Each piece protected against crushing, bending, and scratching; every pack labelled with code, size, grade, and quantity.
What to send us
- Bath type, main chemistry, additives, and whether it contains fluoride.
- Normal and maximum operating temperature.
- Total current, current per basket, voltage, and run time.
- Bus bar shape and size, hook direction, and contact face.
- Distance from bus bar to solution level, and solution level to tank floor.
- Anode material, particle size, and load weight per basket.
Related parts
Quote QB-T2024
Send your dimensions and bath. Written sample and batch prices, lead time, and shipping.
